F2E-TPMS
Category : D6HL
Hits : 9629
Brief :

1. Higher resolution screen
2. Optional TPMS
3. Smart cyclometer function
4. SONY IMX323/ 307 STARVIS sensor
5. Waterproof design
6. Wide view angle

  • Description
  • Inquiry

Overview

VSYS 2CH DVRs are designed especially for motorcycles. Aimed to simplify the use of cameras, for security, and pleasure. The F2 is a 2-channel full HD motorcycle dash cam with a 3.0'' high resolution screen. You can easily mount the monitor on the handlebars to check the rearview of your bike in real-time in the way of mirror image(reversed image) display. And the smart gauge feature also allows you to track speed, location, altitude, trip distance, ODO,tire pressure & temperature(optional) when paired with compatible sensors.

Specifications

Model

F2F / F2X

Manufacturer

V-SYS Technology

CPU

Mstar(MTK) 8339

Screen display

3.0'' LCD, 640x360 resolution

Video resolution

F2F: 1080P+1080P; SONY IMX323
F2X: 1080P+1080P; SONY IMX307

Video frame rate

25fps

Lens

F2F: 6-layer all glass; 150° wide view angle
F2X: 7-layer all glass; 170° wide view angle

Waterproof Level

IP65/IP67

TPMS

Optional

Collision G-Sensor

Three-axis stereo collision detection

Wi-Fi

Support

Loop recording

Support

Microphone

Built-in

Speaker

Built-in

Memorizer

TF card support up to 128GB

Frequency

50Hz/60Hz

Language

English/French/Deutsch/Italian/Spanish/Portuguese/ Chinese/Russian/Turkish/Korean/Japanese

Video Format

MOV (H.264)

Operating Temperature

-10 ~ 65°C

Operating Humidity

15%-60%RH

Battery

Super capacitor + RTC

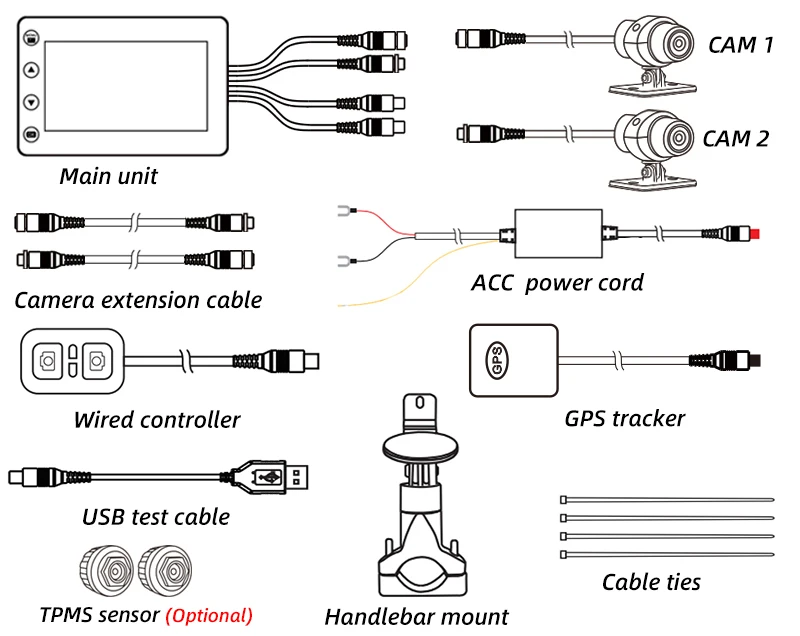

What's Include

Smart Gauge / Smart Digital Meter

Smart Gauge mode provides insights on the speed, location, altitude, single driving time and mileage (trip distance), total driving time and mileage (ODO) when connecting with the dedicated GPS tracker. Additionally, it can also monitor and display the tire pressure and temperature when paired with the optional compatible sensors. ● The tire pressure and temperature monitoring feature is only available when you select the option with TPMS. ● You can also purchase the TPMS sensor separately a bit later to unlock the tire pressure and temperature monitoring function.

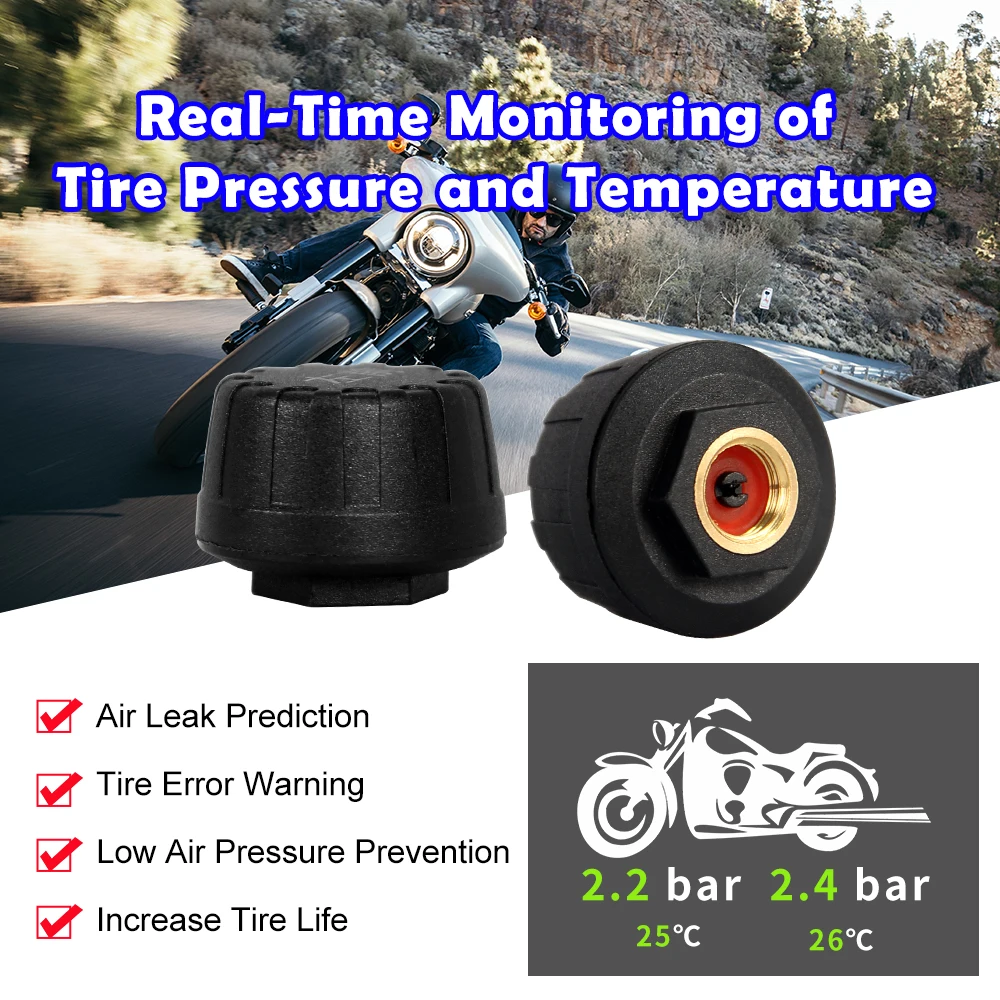

Tire Pressure Monitoring System (Optional)

The add-on TPMS notifies you on the 3.0 inch screen when your vehicle's tire pressure is low/high or temperature is high. By helping you maintain proper tire pressure and temprature, TPMS can increase your safety on the road by improving your vehicle's handling, decreasing tire wear, reducing braking distance and bettering fuel economy. ************************************************ High Pressure Alarm Valve: 3.1 Bar Low Pressure Alarm Valve: 1.8 Bar High Temprature Alarm Valve: 68 ℃ ● The tire pressure and temperature monitoring feature is only available when you select the option with TPMS.

Speedometer /Trip Meter/ Odometer

The dash cam calculates real-time driving speed, single driving time and mileage(trip distance) ,total driving mileage(odometer) via the GPS tracker, displayed on a 3.0" HD screen, giving you real-time access to key information about your trip.

3.0'' HD Screen & Handlebar Mounting Bracket

Having a 3.0'' LCD display makes it very convenient to monitor the real-time recording, and playback the footage immediately. The VSYS F2 uses an 640x360 high-resolution LCD that offers a crisp and sharp picture. High-quality aluminum alloy rotatable handlebar mount allows 360-degree rotation, freely adjust the main unit to any angle that suits your preference, providing you with ultimate flexibility in viewing the rear view of your bike. ● If you don't want the LCD screen is always on when you driving, you can choose to turn the screen off by the function 'Screen Saver' in the MENU setting.

Mirror Image/ Reverse Image Setting

Mirror Image/ Reverse Image Setting for backup camera with the 'Mirror Image' Setting on, you can reverse the image of the rear camera so that the image on the screen matches that of your rear-view mirror. The orientation will match so that the driver doesn't get confused with two conflicting images. ● Only the image on the monitor will be displayed as the flip image(left/right) when you set the 'Mirror Image' on. The videos in the micro SD card is not mirror image.

Watch the Road Behind

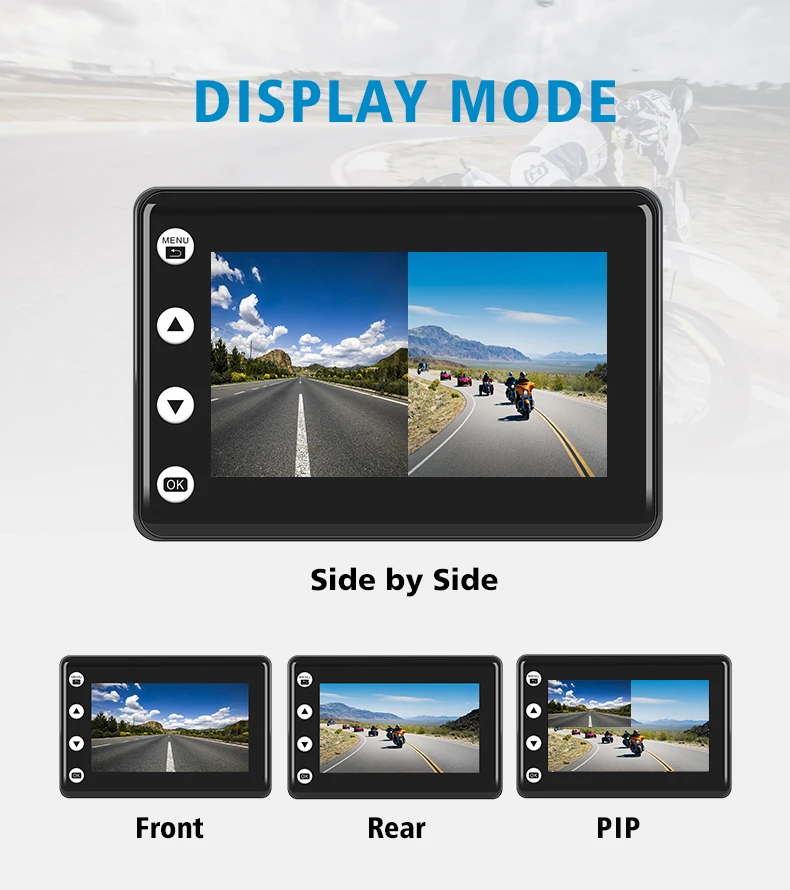

The two cameras will work simultaneously to record in full 1080p HD, both camera footages displayed as either side by side or alternatively in full-screen mode on a 3.0-inch HD screen, allowing it to be used as a reversing camera. ● Short click the blue button on the wired controller to switch the display directly to the rear camera. ● Short press the "down" button of the host to select front, rear, or side by side (default) display mode of the screen.

Especially Designed for Bikers

2 channel separated cameras with each standard 2.0 meters extension cable for front and rear view recording. One on the front and one on the rear of your bike, which will record everything that happens in front of you and behind you at all times. Perfectly fit for motorcycles, scooters, cars, UTV, ATV and any other vehicles.

Hard-Wired Connection

It's hard-wired to the bike. The main unit is mounted to the handlebar (with attached handlebar mount) or under the seat. The separated small camera is fixed with double-sided foam tape and can be fastened with screws. It's easy for hidden installation without being noticed which is different from the helmet or action camera. Horizontal and vertical angles of the lens can be easily adjusted to obtain a better viewing angle.

Superb Image Quality & STARVIS Super Night Vision

● B2F equips with SONY IMX323 CMOS sensor and 6-layer all glass, 150° wide-angle lens. ● B2U equips with SONY IMX307 STARVIS CMOS sensor and 7-layer all glass, 170° wide-angle lens. Both models records in 1920 x 1080 @25fps resolution. And both models feature super night vision, which can enhance details in dark surroundings, capture incredible images in low-light environments.

170° Super Wide Angle

This bike driving recorder employs 170° super wide angle lens. Ultra-wi, , de field of view reduces the blind spots and captures more details, to reserve the real scene. ● F2F features 6-layer all glass and 150° view angle lens.

Built-in WiFi & Easy Video Management

Connect to the built-in Wi-Fi and open the 'WiFi Camera' app to seamlessly view, playback, configure, download, or share incredible HD video wirelessly on your mobile device. APP supports both iOS & Android systems.

Full Body Waterproof Protection

IP67 waterproof design for cameras; IP65 waterproof design for the main unit and other accessories. Whether it's rainy or dusty, it works steadily, recording every moment of your journey.

High/Low-Temperature Resistance

Premium components materials ensure VSYS dash cam can function in temperature from -10℃ - 65℃. This resistance means that you can continue using the VSYS F2 wherever you are. Whether in the hot desert or cold regions, keep recording.

Waterproof Wired Controller

1) Check DVR status and GPS status from LED indicators. 2) Activate Manual Emergency Mode to snapshot and lock video files. 3) Enter the smart gauge mode. 4) Switch the display to the rear camera in full screen.

Track Your Travels

The GPS data(Speed and location) will be saved into each video file. You can easily track your travel through the app directly. And the app allows you to edit the video and share the best moments of your ride with your friends.

Uninterruptible Power Supply

Power through motorcycle's battery never need to be charged. No need to worry about charging problem at all.

Automatic Video Recording

The DVR starts automatically with the ignition switch and turns off once the bike is not being used .

Powered by Super Capacitor

It is powered by super capacitor instead of a lithium battery. In general, super capacitors are more reliable and offer longer lifespans. Compared to batteries, super capacitors will not expand and swell to ruin the device. It is particularly important if you live in an especially cold and hot location. The benefits outweigh those traditional battery-powered devices. It is for sure worth the improved durability and reliability.

Protect Video Evidence

The dash cam will automatically enter REC Mode after powered on, and it can automatically capture unexpected driving accidents and saves video footage of the collision. Your safety and legal rights are always under protection. You can also press the emergency button of wired remote to manually activate emergency recording mode to lock the video file you want to lock. ● Video files recorded in emergency mode(G-sensor activation & manual activation) are protected from being overwritten.

Loop Recording

The most important thing about a dashboard camera is saving all of the critical footage for later viewing. While the memory card has limited capacity, we have designed the loop recording function to overwrite the oldest file continuously when the SD card is full, so that your device is constantly recording and you never lose the most recent footage.
