OVERVIEW
VSYS 2CH DVRs are designed especially for motorcycles. Aimed to simplify the use of cameras, for security, and pleasure.
Compared to sports action camera, VSYS professional dash cameras are equipped with dual front & rear sync recording cameras, allows you to capture the unexpected accident evidence, and amazing travel scenery.
SPECIFICATION
|
Model |
M6L |
P6L |
|
Manufacturer |
V-SYS Technology | |
|
CPU |
Mstar(MTK) | |
|
Screen display |
NO Screen | |
|
Video resolution |
Front: SONY IMX323; 1920*1080 |
Front: SONY IMX323; 1920*1080 |
|
Video frame rate |
30fps | |
|

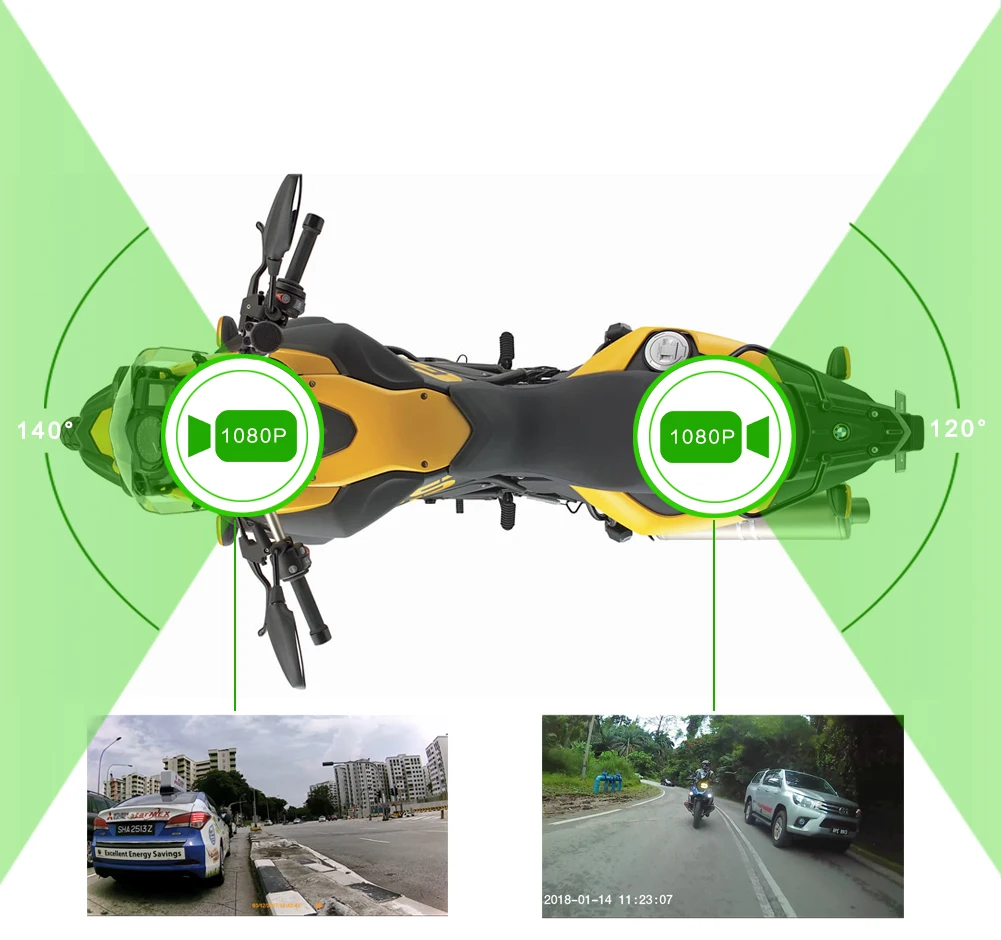

Camera lens view angle |
140° / 120° |
150° / 120° |
|
Camera waterproof Level |
IP67 | |
|
Main body waterproof Level |
/ |
IP65 |
|
Collision G-Sensor |
three-axis stereo collision detection | |
|
Microphone |
Built-in | |
|
Memorizer |
TF Card support up to 128GB | |
|
Wi-Fi |
Support | |
|
GPS track |
Optional | |
|
Loop recording |
Support | |
|
Frequency |
50Hz/60Hz | |
|
Language |
English/ French/ Deutsch/Italian/Spanish/Portuguese / T-Chinese/ S-Chinese/ Russian/ Turkish/Korean/Japan | |
|
Video Format |
MOV (H.264) | |
|
Operating Temperature(°C) |
-15 ~ 60°C | |
|
Operating Humidity(RH) |
15%-60%RH | |
|
Battery capacity |
Super capacity + RTC | |
WHAT'S INCLUDE

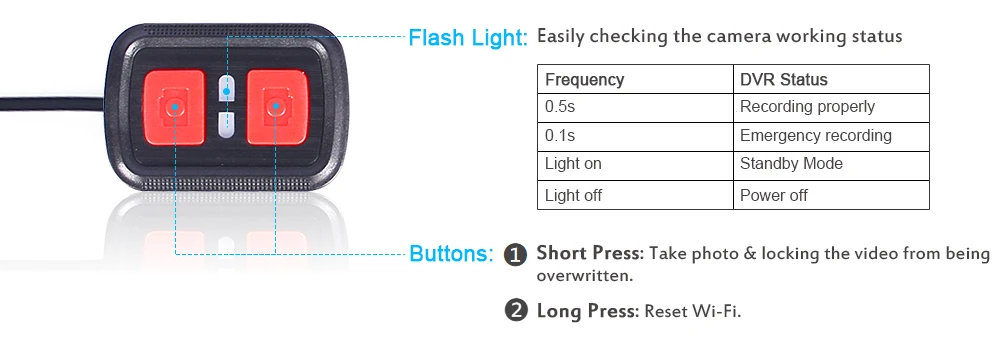

Waterproof Wired Controller (Optional)
1) Show the camera status.
2) Press any one of the button to save 2 photos and a video file named "key 001 002 003...." which won't be overwritten.
3) Long press to Reset WiFi.
Waterproof GPS Tracker (Optional)
Especially Designed for Bikers
Built-in WiFi with mobile APP
Superb Image Quality

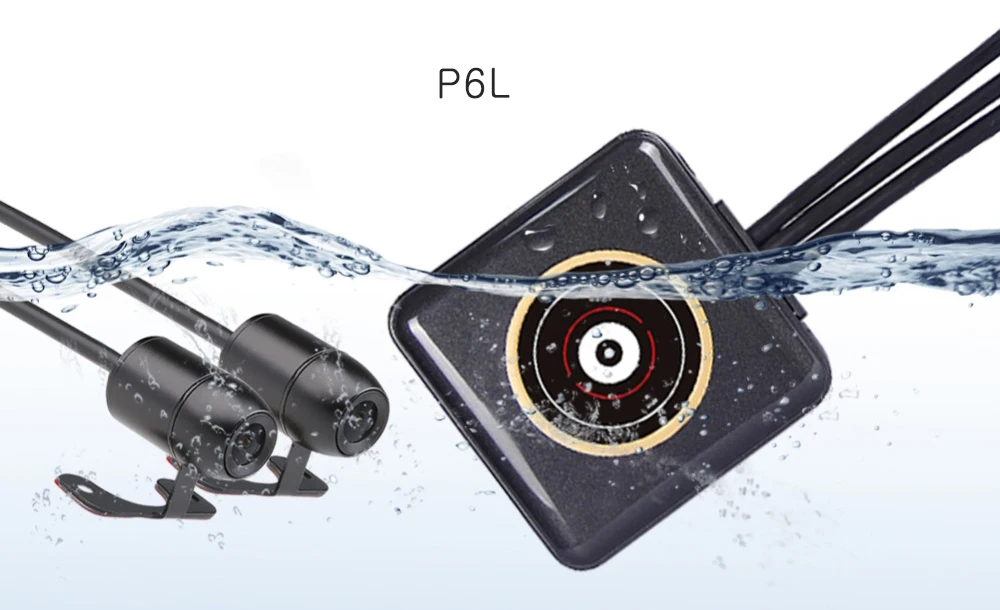

Waterproof Design
Permanent Power Supply
Power through motorcycle's battery never need to be charged. No need to worry about charging problem at all.
Auto Power On/Off
Start automatically with your ignition, or any movement (ACC/smart power module) and turns off once the bike is not being used (keep recording about 3 minutes after your bike not being used for smart power module).
Super Capacitor Design
Without risk of battery explosion and with much longer life compared to lithium battery (with buit-in small RTC battery for time saving only).
Emergency Recording Mode
1) G-Sensor Event Recording: It will automatically activate emergency recording mode when detecting a collision.
2) Manual Event Recording: Press the emergency button of wired remote (optional) to manually activate emergency recording mode.
NOTE: Video files recorded in emergency mode are protected from being overwritten.
Loop Recording
1) Off: The DVR will keep recording without overwriting (record as 30 minutes per clip) and stop once the storage is full.
2) 1/3/5 minutes: The DVR will keep continuously recording as 1/3/5 minutes clips by overwriting the previous files.
