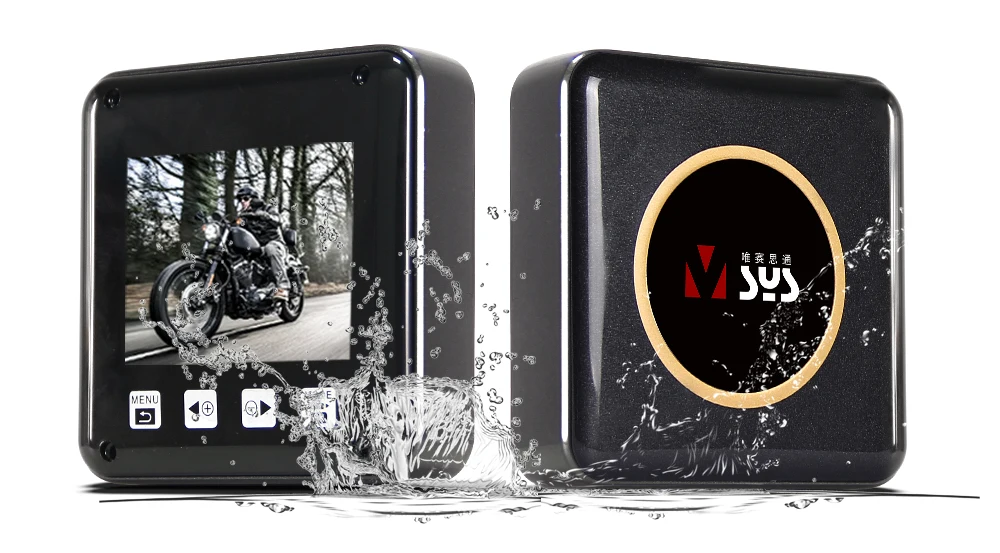

P6/P6F/F6E
Category : 1080P & 1080P
Hits : 21856
Brief :

  • Description
  • Inquiry

Overview

VSYS 2CH DVRs are designed especially for motorcycles. Aimed to simplify the use of cameras, for security, and pleasure.
Compared to the sports action cameras, VSYS professional dash cameras are equipped with dual front & rear sync recording cameras, allows you to capture unexpected accident evidence, and amazing travel scenery.

Specifications

Packing List



24 Hours Parking Monitor (P6F Pro/F6X Series)

When you connect the smart power cable to your bike battery, the DVR will auto switch to Parking Mode while your bike is parked and the engine is off, functioning as a surveillance camera system and automatically recording video on the preset recording length(Auto Mode), or when detecting any bumps or physical movement (Impact Detection).

● Impact Detection

Both front and rear cameras will record 30 seconds after an impact and then turn it off to keep the energy usage to a minimum.

● Preset Mode

Both front and rear cameras will automatically record when the engine is off and then turn it off when reaches the set length of time (15 min/30 min/1 hour/2 hours/3 hours).


※ P6/P6F doesn't support the parking mode.

Smart Gauge / Smart Digital Meter (F6X Series)

Smart Gauge Mode provides insights on the speed, location, altitude, single driving time, and mileage (trip distance) when connecting with the dedicated GPS tracker. Additionally, it can also monitor and display the tire pressure and temperature when paired with the optional TPMS sensors.

※ P6/P6F/P6F Pro doesn't support the Smart Gauge Mode.

Tire Pressure Monitoring System (F6X-TPMS)

The add-on TPMS notifies you on the 2.0 inch HD screen when your vehicle's tire pressure is low/high or temperature is high. By helping you maintain proper tire pressure and temperature, TPMS can increase your safety on the road by improving your vehicle's handling, decreasing tire wear, reducing braking distance, and bettering fuel economy.

High-Pressure Alarm Valve: 3.1 Bar
Low-Pressure Alarm Valve: 1.8 Bar
High-Temperature Alarm Valve: 68 ℃


※ P6/P6F/P6F Pro doesn't support the TPMS.
※ You can purchase the TPMS sensor for F6X separately a bit later to unlock the tire pressure and temperature monitoring function.

Superb Image Quality

● P6 features Mstar 8328 CPU with front SONY IMX323 CMOS sensor and rear Omnivision OV9712 CMOS sensor, 4~6 layers all glass, and 120~150° wide-angle lens. It records at front 30 and rear 25 frames per second in 1080P/720P resolution.


● P6F features Mstar 8328 CPU with dual SONY IMX323 CMOS sensor, 6-layer all glass, and 150° wide-angle lens. It records at 30 frames per second in 1920x1080 resolution.


●
P6F Pro features Mstar 8339 CPU with dual SONY IMX307 CMOS sensor, 6-layer all glass, and 150° wide-angle lens. It records at 25 frames per second in 1920x1080 resolution.

●
F6X/F6X-TPMS features Mstar 8339 CPU with dual SONY IMX307 CMOS sensor, 7-layer all glass, and 170° wide-angle lens. It records at 25 frames per second in 1920x1080 resolution.



170° Super Wide Angle (F6X Series)

The bike driving recorder F6X series employs a 170° super wide-angle lens. Ultra-wide field of view reduces the blind spots and captures more details, to reserve the real scene.

Especially Designed for Bikers

2 channel separated cameras with each standard 2.0 meters extension cable for front and rear view recording. One on the front and one on the rear of your bike, which will record everything that happens in front of you and behind you at all times. Perfectly fit for motorcycles, scooters, cars, UTV, ATV, and any other vehicles.

Hard-Wired Connection

It's hard-wired to the bike. The main unit is mounted under the seat. The separated small camera is fixed with double-sided foam tape and can be fastened with screws. It's easy for hidden installation without being noticed which is different from the helmet or action camera. Horizontal and vertical angles of the lens can be easily adjusted to obtain a better viewing angle.

Buy with Confidence

Made by high-quality materials and optimal processing - stainless steel housing, pure copper core flame retardant cables and high-quality aviation connectors with gold plated pins. And we are the designer and manufacturer, your purchase will be protected by Aliexpress and the manufacturer warranty.

2CH Synchronous Recording

The two cameras will work simultaneously to record in high resolution, both camera footages displayed as either side by side, or alternatively in full-screen mode on a 2.0-inch screen.


※ Short press the "down" button to select front/rear, or side by side (default) view mode.

Built-in WiFi & Easy Video Management

Connect to the built-in Wi-Fi and open the 'WiFi Camera' app to seamlessly view, playback, configure, download, or share incredible HD video wirelessly on your mobile device. APP supports both iOS & Android systems.

Mirror Image/ Reverse Image Setting

For the backup camera with the 'Mirror Image' Setting on, you can reverse the image of the rear camera so that the image on the screen matches that of your rear-view mirror. The orientation will match so that the driver doesn't get confused with two conflicting images.


※ Only the image on the monitor will be displayed as the flip image(left/right) when you the 'Mirror Image' Setting on. The videos in the micro SD card is not mirror image.

Full Body Waterproof Protection

IP67 waterproof design for cameras; IP65 waterproof design for the main unit and other accessories. Whether it's rainy or dusty, it works steadily, recording every moment of your journey.

※ Please do NOT flush the main unit, lenses, power module, wired controller and GPS tracker with the high-pressure water gun.

High/Low-Temperature Resistance

Premium components materials ensure VSYS dash cam can function in temperature from -10℃ - 65℃. This resistance means that you can continue using the dash cam wherever you are. Whether in the hot desert or cold regions, keep recording.

Track Your Travels

The GPS data (Speed and location) will be saved into each video file. You can easily track your travel through GV plyer or WiFi app directly. And when you use the WiFi app to playback the GPS track, it also allows you to edit the video and share the best moments of your ride with your friends.


● P6/P6F only supports viewing the GPS track through the GV player on the computer.
● P6F Pro/F6X series only supports viewing the GPS track through the Wi-Fi App(iOS/Android).



Uninterruptible Power Supply & Low Voltage Protection

Just need to connect the Smart Power cable to the battery '+' and '-' then the power comes through the motorcycle's battery never needs to be charged. And when the bike battery voltage is lower than 11.8V, It will automatically shut down.

Automatic Video Recording

The DVR starts automatically with the key ignition and turns off once the bike is not being used.

※ Make sure the yellow wire is connected to an ACC power source, such as headlight, tail light, horn, and others which is associated with the ignition.

Up to 256GB Micro SD Card Support

Support maximum 256GB micro SD card (TF card, Class 10) which allows up to 23 hours recording for both cameras before overwriting.

Powered by Super Capacitor

The dash cam is powered by super capacitor instead of a lithium battery. In general, super capacitors are more reliable and offer longer lifespans. Compared to batteries, super capacitors will not expand and swell to ruin the device. It is particularly important if you live in an especially cold and hot location. The benefits outweigh those traditional battery-powered devices. It is for sure worth the improved durability and reliability.

Protect Video Evidence

The dash cam will automatically enter REC Mode after powered on, and it can automatically capture unexpected driving accidents and saves video footage of the collision. Your safety and legal rights are always under protection. You can also press the emergency button of wired remote to manually activate emergency recording mode to lock the video file you want to lock.


※ Video files recorded in emergency mode(G-sensor activation & manual activation) are protected from being overwritten.

Loop Recording

The most important thing about a dashboard camera is saving all of the critical footage for later viewing. While the memory card has limited capacity, we have designed the loop recording function to overwrite the oldest file continuously when the SD card is full, so that your device is constantly recording and you never lose the most recent footage.
