1080P+720P P6L/P6FL
Category : VGA & VGA
Hits : 4890
Brief :

1080P+1080P/720P
WiFi
Waterproof

  • Description
  • Inquiry

Overview

VSYS 2CH DVRs are designed especially for motorcycles. Aimed to simplify the use of cameras, for security, and pleasure. Compared to sports action camera, VSYS professional dash cameras are equipped with dual front & rear sync recording cameras, allows you to capture the unexpected accident evidence, and amazing travel scenery.

Specifications

Model

P6

P6F

Manufacturer

V-SYS

V-SYS

Screen  display

2.0'' LCD

2.0'' LCD

Video resolution

Front: 1920x1080; SONY IMX323

Front: 1920x1080; SONY IMX323

Rear: 1280x720; OV9712

Rear: 1920x1080; SONY IMX323

Camera lens view angle

150°/120°

150°/150°

Video frame rate

30fps

30fps

waterproof Level

IP65(host) / IP67(camera)

IP65(host) / IP67(camera)

camera wire length

2.5 meters for each camera

2.5 meters for each camera

Collision G-Sensor

Three-axis stereo collision detection

Three-axis stereo collision detection

Microphone

Built-in

Built-in

Memorizer

TF Card support up to 128GB

TF Card support up to 128GB

Channels

2 channels

2 channels

Wi-Fi

Built-in

Built-in

Loop recording

Support

Support

Frequency

50Hz/60Hz

50Hz/60Hz

Language

English/ French/ Deutsch/Italian/Spanish/Portuguese / T-Chinese/ S-Chinese/ Russian/ Turkish/Korean/Japanese

Video Format

MOV (H.264)

MOV (H.264)

GPS Player software

GV Player

GV Player

Operating Voltage

DC 3.7~ 5V

DC 3.7~ 5V

Operating Temperature(°C)

(0°C-60°C)

(0°C-60°C)

Operating Humidity(RH)

15%-60%RH

15%-60%RH

Battery

Super capacitor + RTC

Super capacitor + RTC

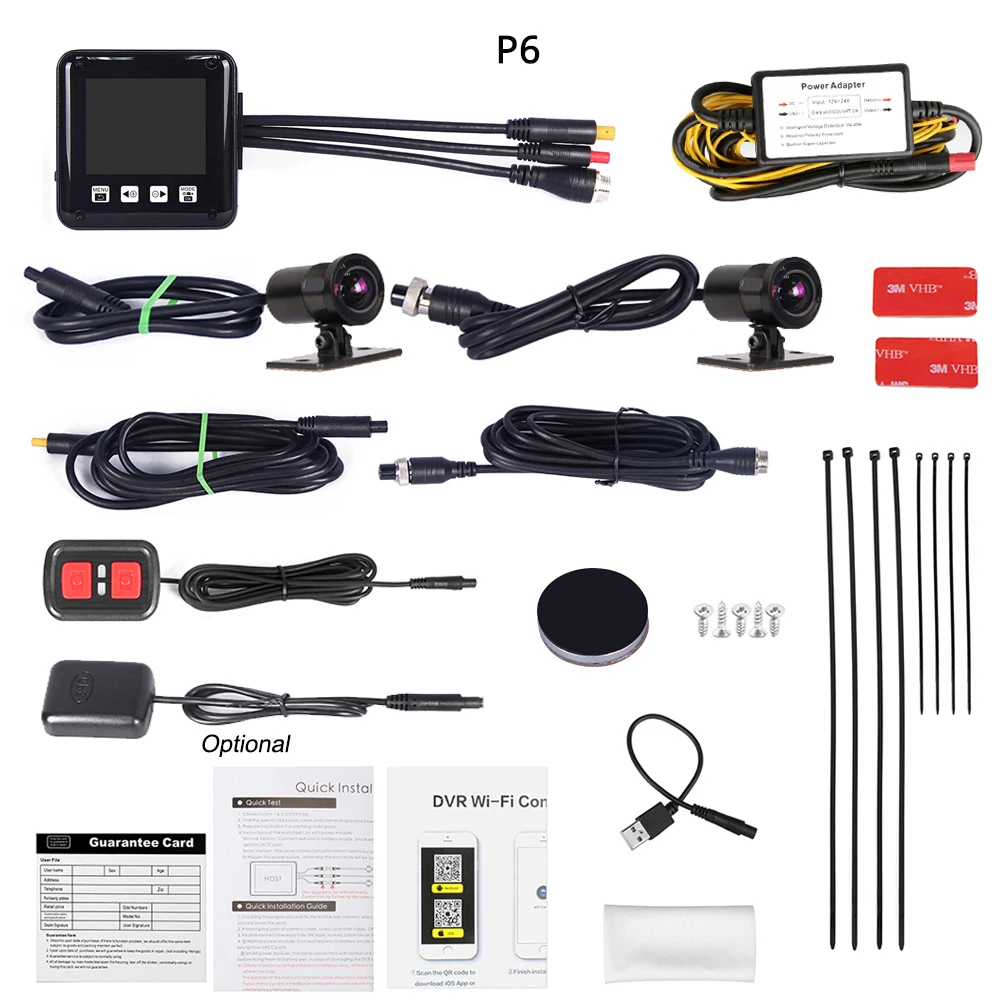

What's Include

Especially Designed for Bikers

2 channel separated cameras with each standard 2.5 meters extension cable for front and rear view recording. One on the front and one on the rear of your bike, which will record everything that happens in front of you and behind you at all times. Perfectly fit for motorcycles, scooters, cars, UTV, ATV and any other vehicles.

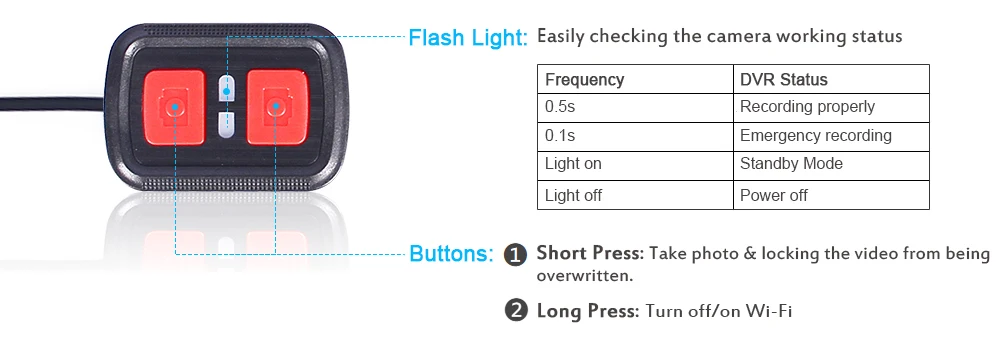

Waterproof Wired Conroller

1) Short press any button of wired remote to activate Manual Emergency Mode to snapshot and lock video files. 2) Long press any button to turn off/on the WiFi. 3) Check DVR status from LED indicators of wired remote.

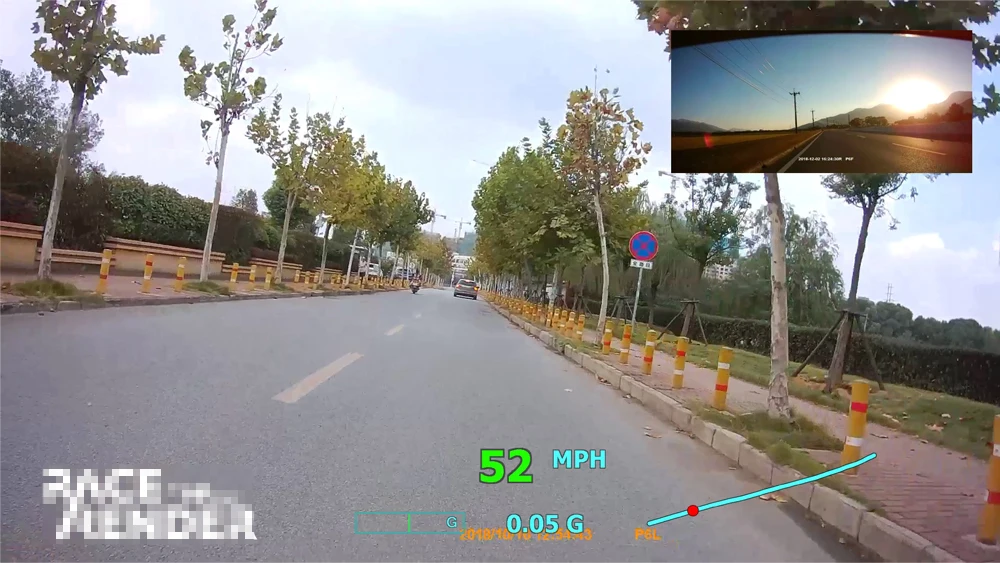

Waterproof GPS Tracker (Optional)

1 The GPS data (coordinate, speed, route) will be saved as a file named ''XXXXX. NMEA'' if you connected a GPS tracker with the dash cam and received GPS signal successfully (check the GPS track status in menu settings). 2) The GPS route and speed will be displayed on Google map when you playback the video in the GPS Player (GV Player).​​ 3)You can input the GPS files to display GPS information in the video when editing videos with the third-party software that supports GPS data input.

Superb Image Quality

Both cameras are equipped with Sony IMX323 CMOS sensor (Full HD 1080P ), or OV9712 CMOS sensor(HD 720P), 6-layer full glass (4-layer for the 720P lens), and 150° wide-angle lens(120° for the 720P lens). Brings a super sharp image quality, and crystal clear video.

Built-in WiFi with mobile APP

Allows you to view (real time), snapshot, playback and download online wirelessly on your mobile device. APP supports both iOS & Android systems.

Full Body Waterproof Design

IP65 waterproof design for the main unit and other accessories; IP67 waterproof design for cameras. Allows you to use it under any weather condition.

Battery Voltage Display

The voltage display function helps to monitor the health of your vehicle's battery and electrical system in real-time, extend battery life to prevent accident caused by battery problems. ********************************************** Voltage < 12V → Red voltage digital 13.2 >Voltage > 12V → Yellow voltage digital Voltage > 13.2V → Green voltage digital ********************************************** Note: This function is only for P6F version.

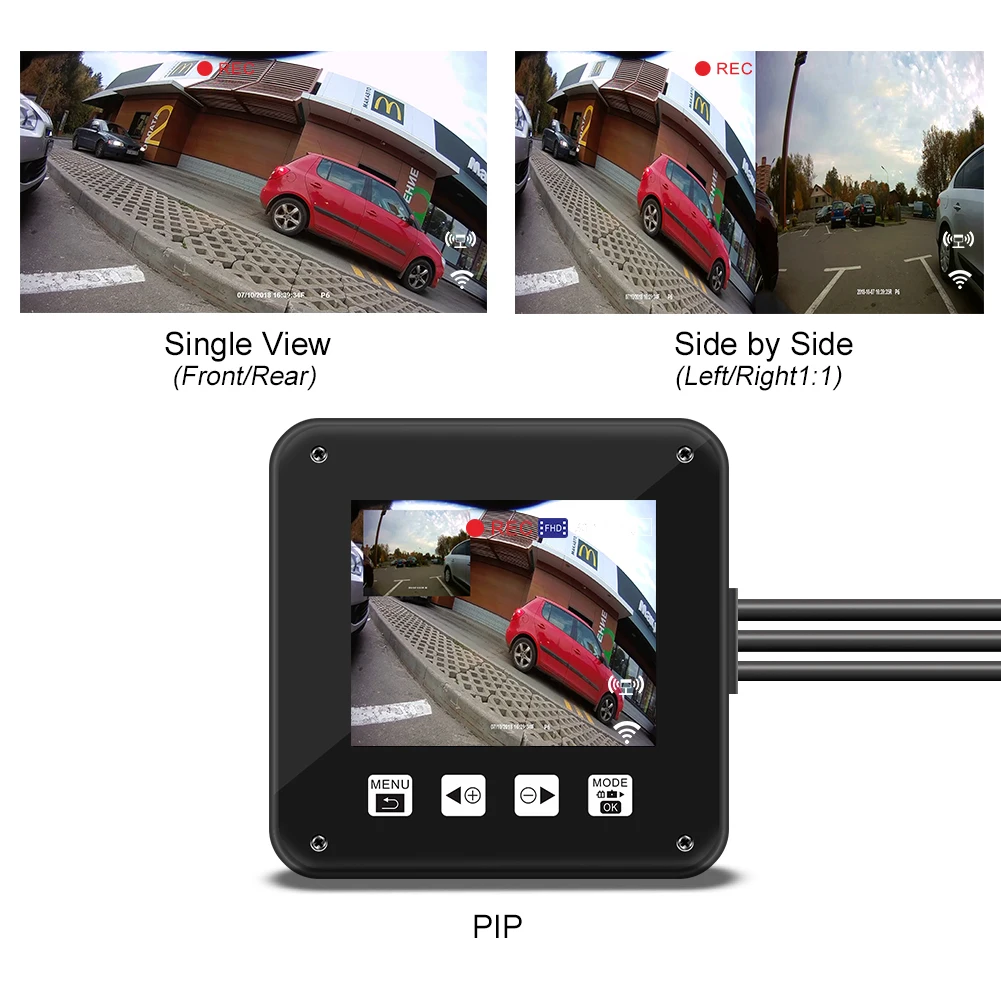

2 Ways of Monitoring and Playback

1) With a 2.0-inch monitor, you can select the front, rear, PIP or side by side (default) display model by short pressing the "down button".   2) You can easily check the front or rear image by connecting to the DVR through Wi-Fi App.

Mirror and Normal Image

It is possible to turn on the mirror image setting of the rear camera through the menu settings if you need. Then both the image on the monitor and videos in the micro SD card will be displayed as the flip image(left/right).

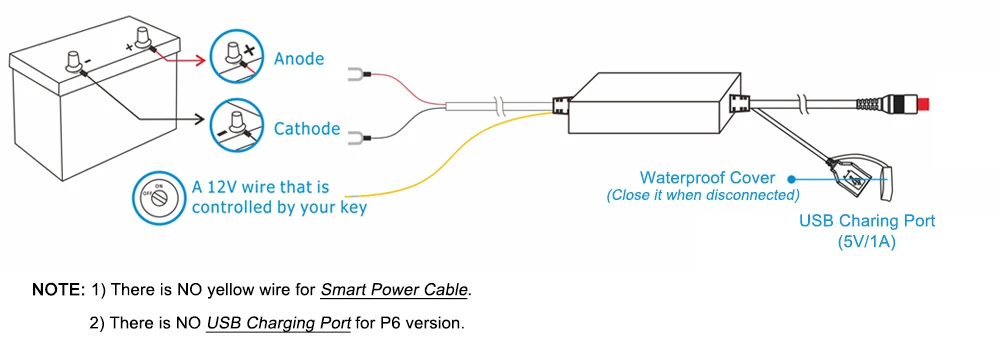

Permanent Power Supply & USB Charging Port

1) Power through motorcycle's battery never need to be charged. No need to worry about charging problem at all. 2) Provide a 5V/1A USB charging port (only for P6F version).

Auto Power On/Off

Start automatically with your ignition, or any movement (ACC/smart power module) and turns off once the bike is not being used (keep recording about 3 minutes after your bike not being used for smart power module).

Super Capacitor Design

Without risk of battery explosion and with much longer life compared to lithium battery (with buit-in small RTC battery for time saving only).

Emergency Recording Mode

1) G-Sensor Event Recording: It will automatically activate emergency recording mode when detecting a collision.​ 2) Manual Event Recording: Press the emergency button of wired remote (optional) to manually activate emergency recording mode. NOTE: Video files recorded in emergency mode are protected from being overwritten.

Loop Recording

1) Off: The DVR will keep recording without overwriting (record as 30 minutes per clip) and stop once the storage is full. 2) 1/3/5 minutes: The DVR will keep continuously recording as 1/3/5 minutes clips by overwriting the previous files.
