1080P X2 Fisheye Edition
Category : VGA & VGA
Hits : 4041
Brief :

1. Designed for motorcycle sport & scurity
2. Come with dual 1080P FHD separate camera
3. Support 2-6 meters cable for each camera
4. Optional dual 170 degree ultra wide angle fisheye lens

  • Description
  • Inquiry

2017 Latest X2 Dual FHD High End Motorcycle Camera Dvr for Front and Rear View Record Better than X1F



Main features :

♦2CH sync recording
♦Real 1920*1080P FHD front camera
♦Real 1920*1080P FHD rear camera
♦Both cameras are IP68
♦2.5 meters wire for each camera
♦3.0''TFT screen

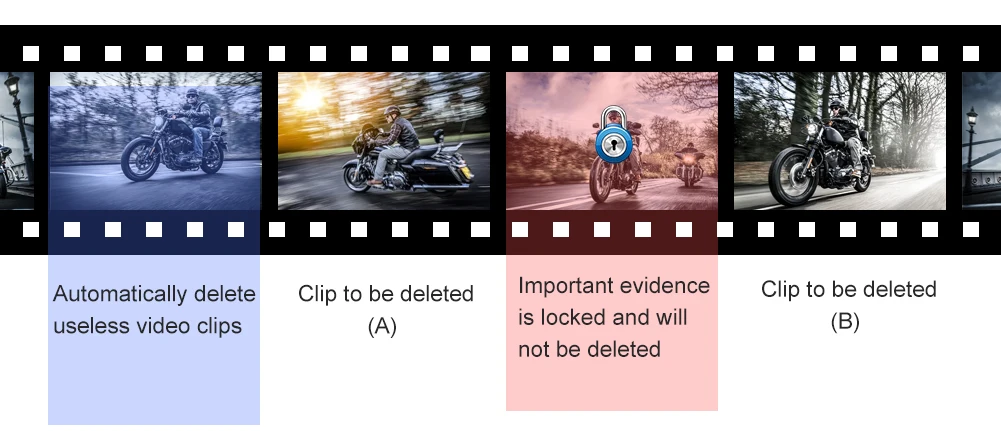

♦Support loop recording
♦Support maximum 258G memory card
♦GPS tracker (optional)
♦Wired controller device (optional)
♦Waterproof box (optional)
♦170° ultra wide angle camera (optional)
♦Built-in G-Sensor
♦Metal housing

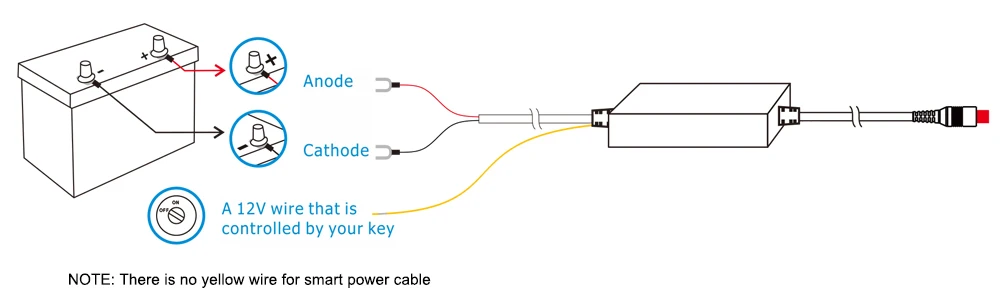

♦Connectable with motorcycle battery/ACC without charging problem (better than normal sport camera)
♦Auto on/off while the engine on/off



 Video demo taken by our customers(Pls choose 1080P FHD in youtube):

Day time :   https://www.youtube.com/watch?v=LVrEhC-DCPM

Night time :   https://www.youtube.com/watch?v=qZhTPO2ET6E

X1F video screenshot.png



Installation pictures shared by customers:

092701092703gaitu







X2

Waterproof Wire Controller functions and Pictures:

----Wire controller functions:

1. Press any one of the button to save a video file named "key 001 002 003...." which won't be overwritten .

2. Show the camera status

LED indicator flicker frequency

DVR Status

0.5s

Working properly

0.1s

Emergency recording

0 s ( Light on )

No recording

Off ( Light off )

Power off


----Wire controller Pictures:


QQ20170106161949_

Waterproof GPS functions and Pictures (Optional accessory):

----GPS tips:
1. You can , check th, e GPS information like speed , coordinate , route in Google ONLY when you playback the video file in our Dr Player in PC. (Available for windows XP / 2000 /Vista/ Win7)
2. You can download the GPS player from our website :www.szvsys.com or contact the dealer .
3. It costs a few minutes to receive the GPS signal at first connection
4. The weather and environment like indoor, high buildings will affect the GPS signal.
5. Please don’t fix the GPS module in a metal case and ensure the "GPS" facing the sky for receiving the signal

QQ20170331150454.pngMPH and KPH_.png

----GPS Pictures:

GPS4 .jpgGPS3.jpg

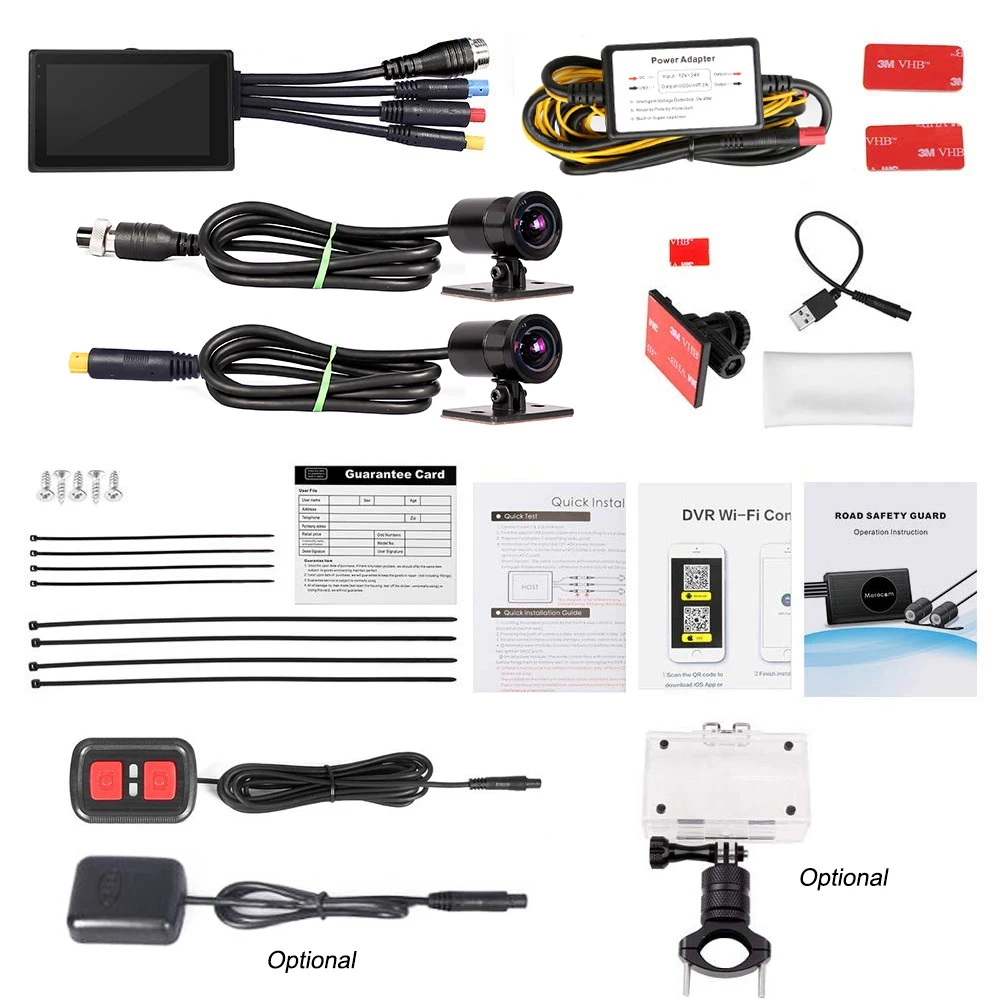

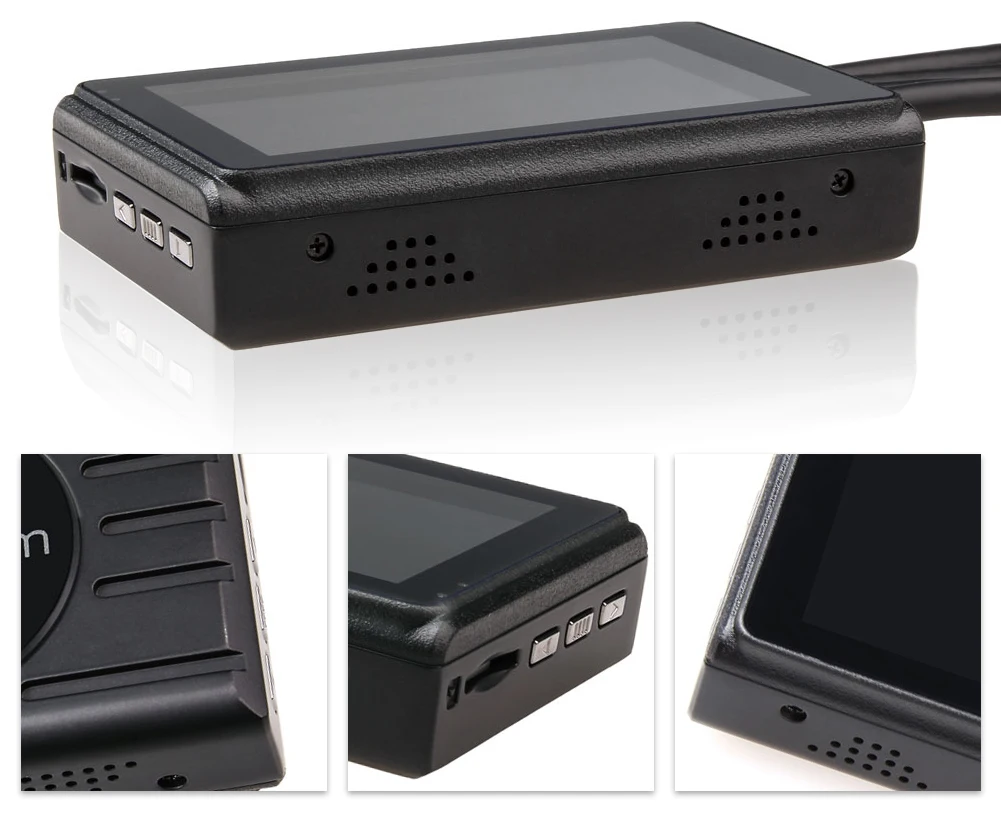

More Details:

1.jpg  2.jpg
  .jpg

Specification:

SZV-SYS DVR SPECS

Model

X2

Waterproof Level

IP68 for front and rear camera

LCD Screen Display

3.0 TFT

Camera  Image Sensor, Mp

2.0  mega-pixels CMOS

Camera Lens View Angle

140 degrees wide angle

Video Resolution

Front : 1920*1080P, back: 1920*1080P

Video Frame Rate

30FPS

Collision G-Sensor

Three-axis stereo collision detection

Loop Recording

Support  (1min/3min/5min)

GPS Track

Optional

Wired Controller

Optional

Video Format

AVI (H.264)

Memory Card

TF Card  Up to 128GB *2

Recording Date and Time on the Video

Date & Time

Language

English/ French/ Deutsch/Italian/Spanish/Portuguese / T-Chinese/ S-Chinese/ Russian/ Turkish/Korean/Japan…

Support Operating System

Windows 2000/XP/Vista32/Win 7

Operating Humidity(RH)

15%-60%RH

Operating Temperature(°C)

(0°C-60°C)

Battery Capacity

built in  Super Capacitor

Player Software

Media Player/VLC /Drplayer for GPS Track

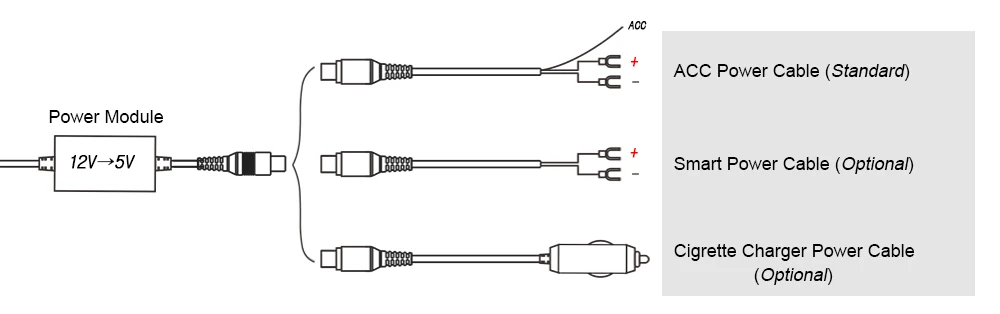

Connection



X2 01.jpg

X2 02.jpg

***Optional waterproof case  (If you use the waterproof box please place motorcycle DVR in a ventilated position like handle bar )

X2 waterproof case 001X2 waterproof case 002X2 waterproof case 003

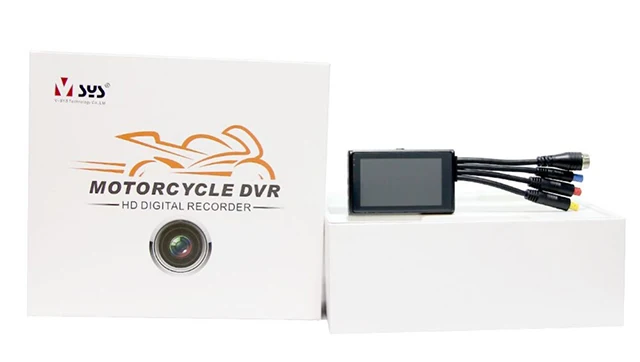

Color Box
